Byram Single Phase Meters

Byram’s meters are electronic electricity meters designed to meet residential metering requirements and provide remote communications. The meters are capable of measuring interval data, bidirectional energy, critical tier, and time-of-use (TOU) data. Byram’s smart meters are available in most common residential wiring configurations.

Key Features

Quick and easy to install
Low ownership cost
Fully Programmable
Reliable, revenue grade
Preprogrammed at Byram Laboratories, Inc.
Conforms to ANSI electrical standards
UL Recognized safety
Space saving footprint
Pulse output capabilities
Potential for future integration in smart metering mesh network

Specifications

Voltage	1 phase, 2 wire service	120 VAC ± 20%
	1 phase, 3 wire service	120/208 VAC ± 20%
	1 phase, 3 wire service	240 VAC ± 20%
Current	200A
Frequency	Nominal 60 Hz ± 5%
Temperature	-40°F to +131°F (ambient)
Humidity	0% to 100 % (non-condensing)
General performance characteristics
Starting current	100mA
Creep 0. 00 0 A (no current)	No more than 1 pulse measure d per quantity, conforming to ANSI C12.1 requirements
Burden	Less than 1.5W
IEC standards compliance	IEC 62052-11, IEC 62052-21, IEC 62053-21
Additional standards	C12.19, C12.22, AS/NZS 4268, NMI M6

Non Demand Meter Kits

Models	Ordering Number	Voltage	Amperage Measurement*	Electrical System

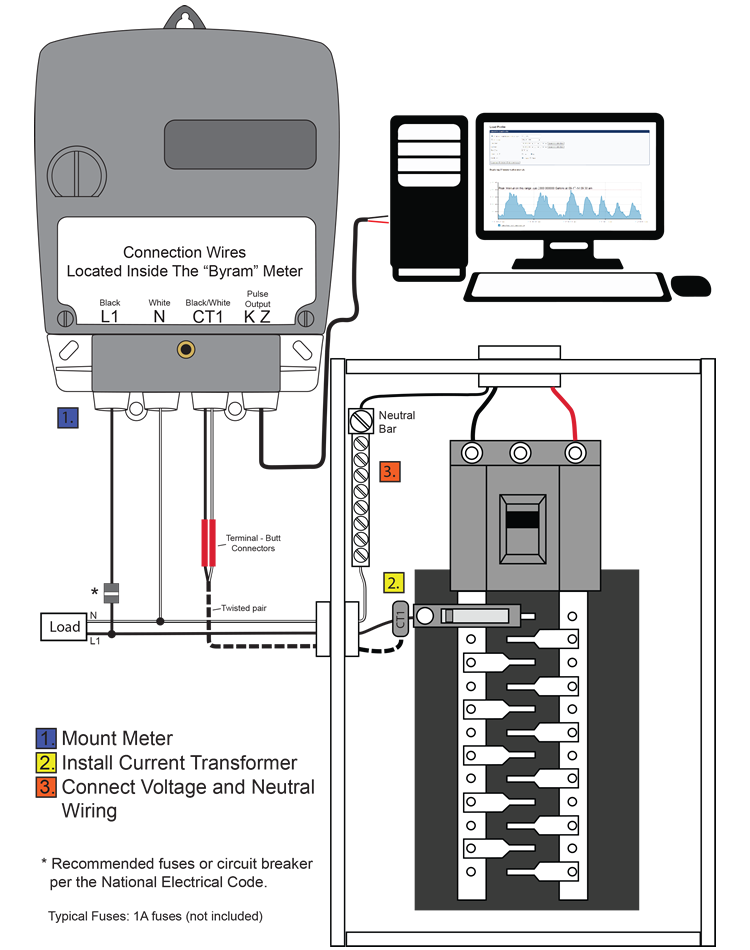

B10-2120100	1C7317	120	100A	1 Phase, 2 Wire
B10-2120200	1C7383	120	200A	1 Phase, 2 Wire

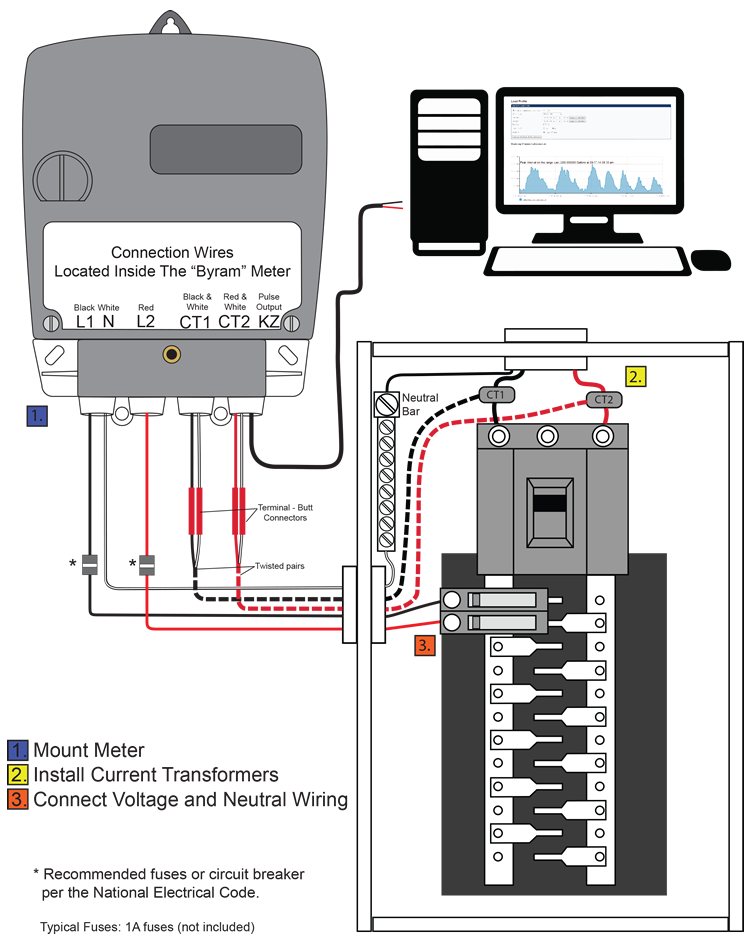

B10-3208100	1C7319	208/240	100A	1 Phase, 3 Wire, Network
B10-3208200	1C7320	208/240	200A	1 Phase, 3 Wire, Network

*Only 1 CT supplied for 2 wire meters. Other amperages available upon request

Demand Meter Kits

Models	Ordering Number	Voltage	Amperage Measurement*	Electrical System
B10-2120100D	1C7384	120	100A	1 Phase, 2 Wire
B10-2120200D	1C7318	120	200A	1 Phase, 2 Wire
B10-3208100D	1C7074	208/240	100A	1 Phase, 3 Wire, Network
B10-3208200D	1C7323	208/240	200A	1 Phase, 3 Wire, Network
