3-Phase, 3-Wire/ Commercial & Industrial

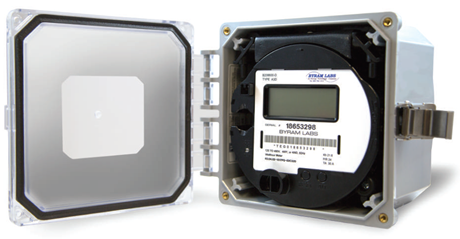

The Byram meter is a very accurate revenue meter (0.2 accuracy Class). The meter provides advanced four quadrant revenue functions, transformer and line loss compensation, and increased data profiling without adding hardware option boards. The main circuit board has a non-volatile memory for storing profile, data logs, and self read data. If extensive profile recording is required, an extended memory option board can be easily added to increase total memory by 1 MB. When optional instrumentation profiling is enabled, the meter stores 2 separate sets of instrumentation data. Each data set has an independent interval length and up to 16 channels. With instrumentation profiling, each meter becomes a powerful data collection tool to monitor data and diagnose problems without installing expensive temporary monitoring equipment.

Power Quality Management

Power quality management (PQM) provides continuous service condition monitoring 24 hours a day. PQM looks for exceptions to user-defined thresholds for items such as voltage, current, and total harmonic distortion. Each of the 12 PQM tests can be configured to control relay activation, LCD warning, date/time stamp log entry, and even an automatic telephone call to report the condition.

Key Features

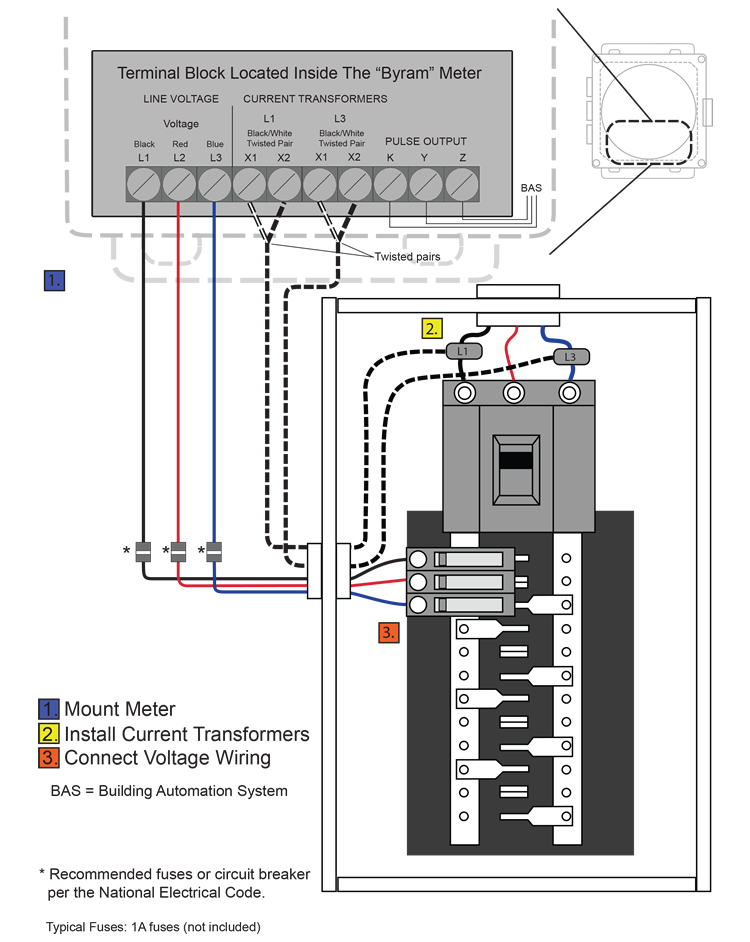

Quick and easy to install
Low ownership cost
Fully Programmable
Reliable, revenue grade
Preprogrammed at Byram Laboratories, Inc.
Conforms to ANSI electrical standards
UL Recognized safety
Space saving footprint
Pulse output capabilities
Potential for future integration in smart metering mesh network

Non Demand Meter Kits

Models	Ordering Number	Voltage	Amperage Measurement*	Electrical System
B20-120100	1C7302	120V	100A	3 Phase, 3 Wire
B20-120200	1C7303	120V	200A	3 Phase, 3 Wire
B20-120400	1C7304	120V	400A	3 Phase, 3 Wire
B20-120800	1C7305	120V	800A	3 Phase, 3 Wire
B20-1201600	1C7306	120V	1600A	3 Phase, 3 Wire
B20-240100	1C7307	240V	100A	3 Phase, 3 Wire
B20-240200	1C7308	240V	200A	3 Phase, 3 Wire
B20-240400	1C7309	240V	400A	3 Phase, 3 Wire
B20-240800	1C7310	240V	800A	3 Phase, 3 Wire
B20-2401600	1C7311	240V	1600A	3 Phase, 3 Wire
B20-480100	1C7312	480V	100A	3 Phase, 3 Wire
B20-480200	1C7313	480V	200A	3 Phase, 3 Wire
B20-480400	1C7314	480V	400A	3 Phase, 3 Wire
B20-480800	1C7315	480V	800A	3 Phase, 3 Wire
B20-4801600	1C7316	480V	1600A	3 Phase, 3 Wire

*Other ratios available upon request

Demand Meter Kits

Models	Ordering Number	Voltage	Amperage Measurement*	Electrical System
B20-120100D	1C7287	120V	100A	3 Phase, 3 Wire
B20-120200D	1C7288	120V	200A	3 Phase, 3 Wire
B20-120400D	1C7289	120V	400A	3 Phase, 3 Wire
B20-120800D	1C7290	120V	800A	3 Phase, 3 Wire
B20-1201600D	1C7291	120V	1600A	3 Phase, 3 Wire
B20-240100D	1C7292	240V	100A	3 Phase, 3 Wire
B20-240200D	1C7293	240V	200A	3 Phase, 3 Wire
B20-240400D	1C7294	240V	400A	3 Phase, 3 Wire
B20-240800D	1C7295	240V	800A	3 Phase, 3 Wire
B20-2401600D	1C7296	240V	1600A	3 Phase, 3 Wire
B20-480100D	1C7297	480V	100A	3 Phase, 3 Wire
B20-480200D	1C7298	480V	200A	3 Phase, 3 Wire
B20-480400D	1C7299	480V	400A	3 Phase, 3 Wire
B20-480800D	1C7300	480V	800A	3 Phase, 3 Wire
B20-4801600D	1C7301	480V	1600A	3 Phase, 3 Wire
