3-Phase, 4-Wire/ Commercial & Industrial

The Byram meter is a very accurate revenue meter (0.2 accuracy Class). The meter provides advanced four quadrant revenue functions, transformer and line loss compensation, and increased data profiling without adding hardware option boards. The main circuit board has a nonvolatile memory for storing profile, data logs, and self read data. If extensive profile recording is required, an extended memory option board can be easily added to increase total memory by 1 MB. When optional instrumentation profiling is enabled, the meter stores 2 separate sets of instrumentation data. Each data set has an independent interval length and up to 16 channels. With instrumentation profiling, each meter becomes a powerful data collection tool to monitor data and diagnose problems without installing expensive temporary monitoring equipment.

Power Quality Management

Power quality management (PQM) provides continuous service condition monitoring 24 hours a day. PQM looks for exceptions to user-defined thresholds for items such as voltage, current, and total harmonic distortion. Each of the 12 PQM tests can be configured to control relay activation, LCD warning, date/time stamp log entry, and even an automatic telephone call to report the condition.

Key Features

  • Quick and easy to install
  • Low ownership cost
  • Fully Programmable
  • Reliable, revenue grade
  • Preprogrammed at Byram Laboratories, Inc.
  • Conforms to ANSI electrical standards
  • UL Recognized safety
  • Space saving footprint
  • Pulse output capabilities
  • Potential for future integration in smart metering mesh network

Non Demand Meter Kits

Models Ordering Number Voltage Amperage Measurement* Electrical System
B20-208100 1C7234 208V 100A 3 Phase, 4 Wire
B20-208200 1C7235 208V 200A 3 Phase, 4 Wire
B20-208400 1C7321 208V 400A 3 Phase, 4 Wire
B20-208800 1C7322 208V 800A 3 Phase, 4 Wire
B20-2081600 1C7281 208V 1600A 3 Phase, 4 Wire
B20-277100 1C7283 277V 100A 3 Phase, 4 Wire
B20-277200 1C7282 277V 200A 3 Phase, 4 Wire
B20-277400 1C7284 277V 400A 3 Phase, 4 Wire
B20-277800 1C7285 277V 800A 3 Phase, 4 Wire
B20-2771600 1C7286 277V 1600A 3 Phase, 4 Wire
*Other ratios available upon request

Demand Meter Kits

Models Ordering Number Voltage Amperage Measurement* Electrical System
B20-208100D 1C6629 208V 100A 3 Phase, 4 Wire
B20-208200D 1C7145 208V 200A 3 Phase, 4 Wire
B20-208400D 1C7146 208V 400A 3 Phase, 4 Wire
B20-208800D 1C7147 208V 800A 3 Phase, 4 Wire
B20-2081600D 1C7148 208V 1600A 3 Phase, 4 Wire
B20-277100D 1C7149 277V 100A 3 Phase, 4 Wire
B20-277200D 1C7150 277V 200A 3 Phase, 4 Wire
B20-277400D 1C7151 277V 400A 3 Phase, 4 Wire
B20-277800D 1C7152 277V 800A 3 Phase, 4 Wire
B20-2771600D 1C7153 277V 1600A 3 Phase, 4 Wire
*Other ratios available upon request

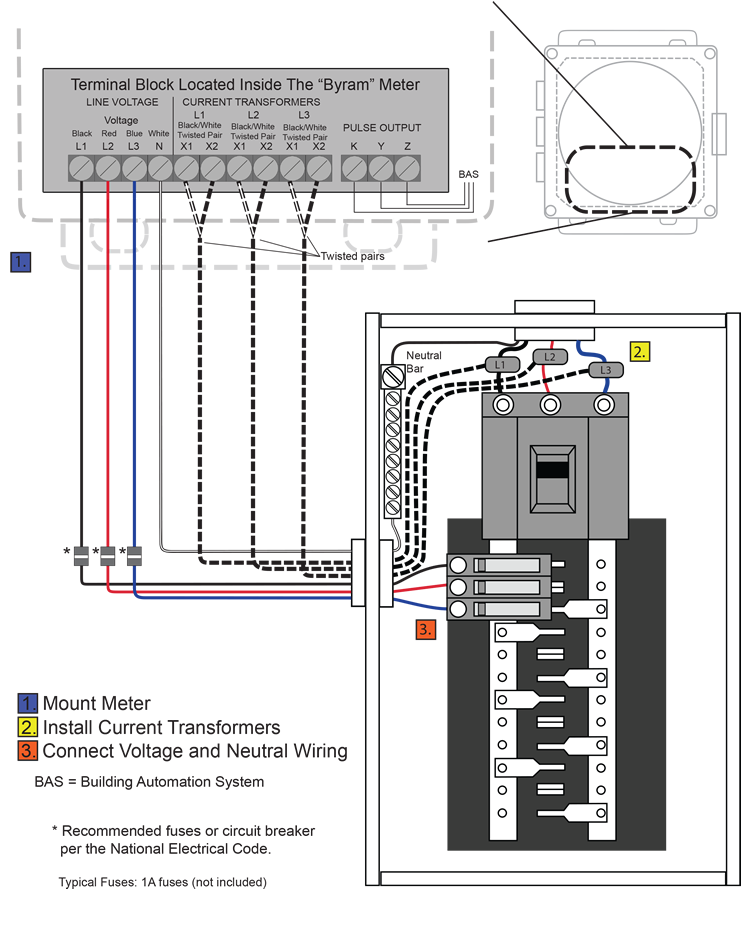

3 Phase, 3 Wire Installation Diagram

Polyphase Meter Dimensions
